Foundry and Github Actions

Learn how to configure a GitHub Action to set up a continuous integration and continuous deployment pipeline (CI/CD) with Foundry on Tenderly Virtual Environments. Use the Tenderly Virtual TestNet Setup action to enable automated builds to test and stage your contracts. This approach enables:

CI/CD Integration: Run tests against forked networks and set up staging environments
Multi-Network Testing: Provision multiple networks in a single step
Automated Deployments: Deploy and verify contracts with complete deployment logs
Artifact Collection: Track deployments across networks with structured logs

In this guide, you need to complete two stages:

Local setup: Set up Foundry to create and test out the workflow file
GitHub setup: Set up a GitHub Action, configure GitHub secrets and variables, and test the build

For reference, use this example project:

Foundry CI/CD setup

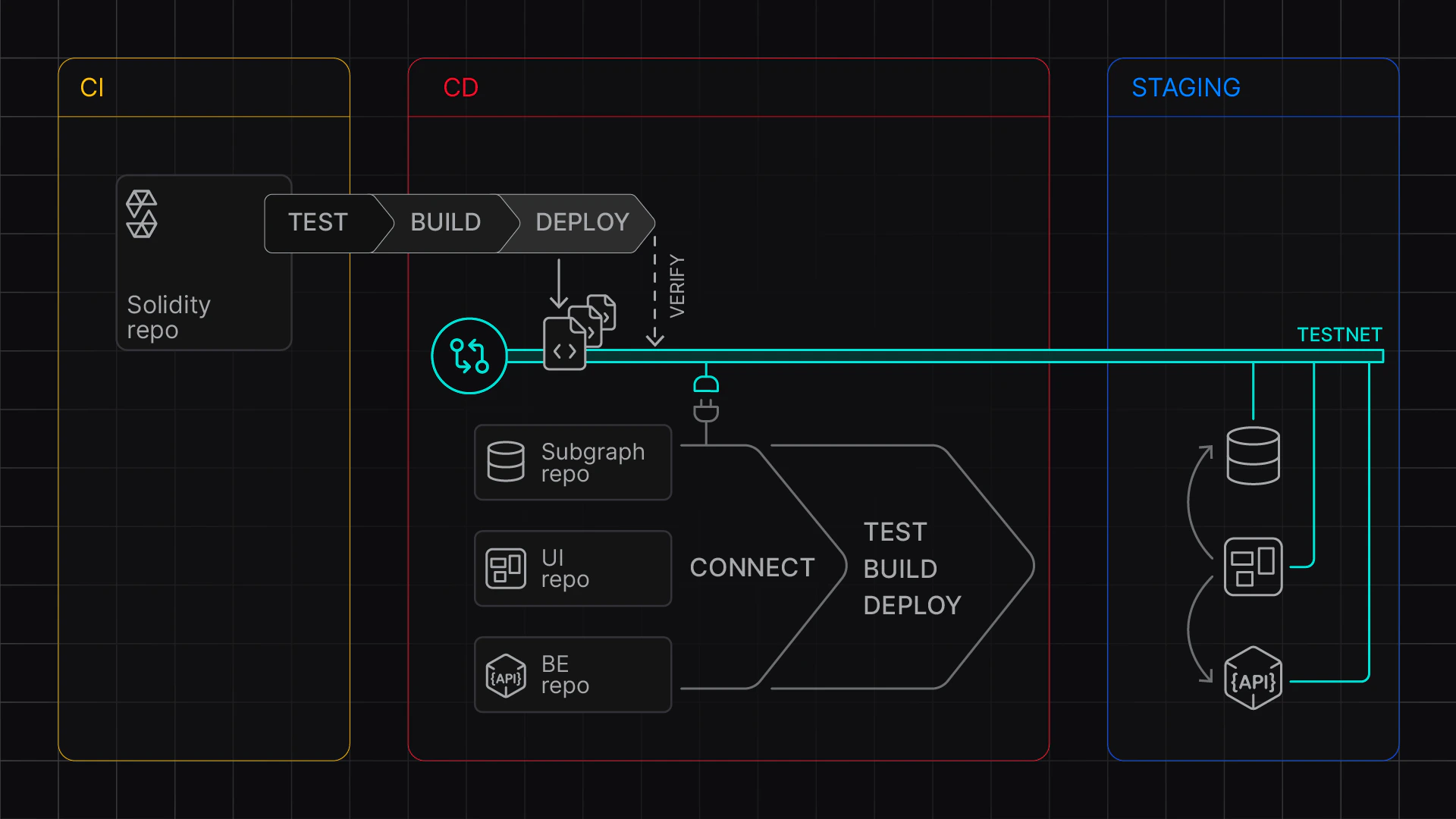

Continuous integration (CI) and continous deployment (CD) with Virtual Environments

Stage 1: Local Setup

First, create a workflow file with the necessary settings.

Create the Workflow File

In your foundry project, create a new workflows directory and ci-cd.yaml:

mkdir -p .github/workflows
touch .github/workflows/ci-cd.yaml

Next, paste the following configuration to ci-cd.yaml that sets up two jobs:

test job to run Foundry tests

deploy job to deploy contracts to a staging Virtual Environment

This sample workflow file:

Uses tenderly/vnet-github-action to provision Virtual Environments based on a given network_id (Mainnet and Base), with custom chain_id

Uses update_foundry_config_and_build to modify foundry.toml with the correct chain ID (especially important if you’re using a custom chain_id), and passes verification information.

Funds the DEPLOYER_WALLET_ADDRESS EOA with 100 ETH, using set_wallet_balance

Deploys the contracts on the Virtual Environment

Collects deployment information to $BUILD_OUTPUT_FILE_1 and $BUILD_OUTPUT_FILE_8453, respectively, using foundry’s --json option

Pushes captured deployment information to the repository

The mode argument for Tenderly/vnet-github-action takes values CI and CD.

The CD mode keeps the Virtual Environment active and you can work with deployed contracts.
The CI mode pauses the Virtual Environment after the step completes. You’ll be able to inspect transactions but won’t be able to send further RPC requests.

name: Foundry CI/CD

on:
  push:
  pull_request:

env:
  TENDERLY_ACCESS_KEY: ${{ secrets.TENDERLY_ACCESS_KEY }}
  DEPLOYER_WALLET_ADDRESS: ${{ vars.DEPLOYER_WALLET_ADDRESS }}
  DEBUG: tenderly/vnet-github-action@v1.0.14
jobs:
  deploy:
    runs-on: ubuntu-latest
    defaults:
      run:
        working-directory: ./examples/foundry
    permissions:
      contents: write
    steps:
      - uses: actions/checkout@v4
        with:
          submodules: recursive

      - name: Setup Virtual Environment
        uses: tenderly/vnet-github-action@v1.0.14
        with:
          mode: CD
          access_key: ${{ secrets.TENDERLY_ACCESS_KEY }}
          project_name: ${{ vars.TENDERLY_PROJECT_NAME }}
          account_name: ${{ vars.TENDERLY_ACCOUNT_NAME }}
          testnet_name: "Staging"
          network_id: |
            1
            8453
          chain_id_prefix: 7357
          public_explorer: true
          verification_visibility: 'src'
          push_on_complete: true

      - name: Install Foundry
        uses: foundry-rs/foundry-toolchain@v1

      - name: Fund Deployer Account on Mainnet
        run: |
          source ../../fixtures/load-fixtures.sh
          update_foundry_config_and_build $TENDERLY_ACCESS_KEY $TENDERLY_FOUNDRY_VERIFICATION_URL_1  $TENDERLY_CHAIN_ID_1
          set_wallet_balance $TENDERLY_ADMIN_RPC_URL_1 ${{ vars.DEPLOYER_WALLET_ADDRESS }} $HUNDRED_ETH

      - name: Deploy Contracts Mainnet
        run: |
          forge build --sizes
          forge script script/Counter.s.sol \
            --private-key ${{ secrets.DEPLOYER_PRIVATE_KEY }} \
            --rpc-url ${{ env.TENDERLY_PUBLIC_RPC_URL_1 }} \
            --verifier-url ${{ env.TENDERLY_FOUNDRY_VERIFICATION_URL_1 }} \
            --etherscan-api-key $TENDERLY_ACCESS_KEY \
            --slow \
            --broadcast \
            --verify \
            --json > $BUILD_OUTPUT_FILE_1

      - name: Fund Deployer Account on Base
        run: |
          source ../../fixtures/load-fixtures.sh
          update_foundry_config_and_build $TENDERLY_ACCESS_KEY $TENDERLY_FOUNDRY_VERIFICATION_URL_8453  $TENDERLY_CHAIN_ID_8453
          set_wallet_balance $TENDERLY_ADMIN_RPC_URL_8453 ${{ vars.DEPLOYER_WALLET_ADDRESS }} $HUNDRED_ETH

      - name: Deploy Contracts Base
        working-directory: ./examples/foundry
        run: |
          forge script script/Counter.s.sol \
            --private-key ${{ secrets.DEPLOYER_PRIVATE_KEY }} \
            --rpc-url ${{ env.TENDERLY_PUBLIC_RPC_URL_8453 }} \
            --verifier-url ${{ env.TENDERLY_FOUNDRY_VERIFICATION_URL_8453 }} \
            --etherscan-api-key $TENDERLY_ACCESS_KEY \
            --slow \
            --broadcast \
            --verify \
            --json > $BUILD_OUTPUT_FILE_8453

Configure Foundry

Create or update your foundry.toml configuration file. To use automatic contract verification, you must have the unknown_chain entry with key, chain, and url.

When using Virtual Environments from your local machine, replace the `chain = 0` with the chain ID of the Virtual Environment you connected to.

[profile.default]
src = "src"
out = "out"
libs = ["lib"]
cbor_metadata = true
# See more config options https://github.com/foundry-rs/foundry/blob/master/crates/config/README.md#all-options

[etherscan]

## placeholders must be replaced with key ("string"), chain_id (number, non-quoted), and tenderly_foundry_verification_url ("string")
unknown_chain = { key = "$TENDERLY_ACCESS_KEY", chain = 0, url = "$TENDERLY_FOUNDRY_VERIFICATION_URL" }

Prepare Environment Variables

For local testing, set up an .env file with the following variables:

# Access parameters
TENDERLY_ACCESS_KEY=...
TENDERLY_PROJECT_NAME=...
TENDERLY_ACCOUNT_NAME=...

# Deployment parameters
DEPLOYER_PRIVATE_KEY=...
DEPLOYER_WALLET_ADDRESS=...

Required variables:

TENDERLY_ACCESS_KEY: Your Tenderly access key

TENDERLY_ACCOUNT_NAME and TENDERLY_PROJECT_NAME: Your account and project names

DEPLOYER_PRIVATE_KEY: Private key for the deployment wallet

DEPLOYER_WALLET_ADDRESS: Address corresponding to the private key

Add fixtures script

Add the following fixtures.sh to your repository to be able to fund accounts and adapt foundry.toml easily.

This file exposes:

set_wallet_balance function to top up the balance (RPC_URL WALLET_ADDRESS BALANCE_HEX)

update_foundry_config_and_build function to replace the placeholders in foundry.toml

HUNDRED_ETH the wei value corresponding to 100 ETH

#!/bin/bash

set_wallet_balance() {
    if [ "$#" -ne 3 ]; then
        echo "Usage: set_wallet_balance RPC_URL WALLET_ADDRESS BALANCE_HEX"
        return 1
    fi

    local rpc_url="$1"
    local wallet_address="$2"
    local balance_hex="$3"

    curl --location "$rpc_url" \
        --header 'Content-Type: application/json' \
        --data "{
            \"jsonrpc\": \"2.0\",
            \"method\": \"tenderly_setBalance\",
            \"params\": [\"$wallet_address\", \"$balance_hex\"],
            \"id\": \"1\"
        }"
}

update_foundry_config_and_build() {
    if [ "$#" -ne 3 ]; then
        echo "Usage: update_foundry_config_and_build ACCESS_KEY VERIFICATION_URL CHAIN_ID"
        return 1
    fi

    local access_key="$1"
    local verification_url="$2"
    local chain_id="$3"

    # Create temporary file and update foundry.toml
    sed -e "s|\${TENDERLY_ACCESS_KEY}|$access_key|g" \
        -e "s|\${TENDERLY_FOUNDRY_VERIFICATION_URL}|$verification_url|g" \
        -e "s/\(unknown_chain[[:space:]]*=[[:space:]]*{[^}]*chain[[:space:]]*=[[:space:]]*\)[0-9][0-9]*/\1$chain_id/g" \
        foundry.toml > foundry.toml.tmp && mv foundry.toml.tmp foundry.toml
}

# Export constant
HUNDRED_ETH="0xDE0B6B3A7640000"
export HUNDRED_ETH

The github action exposes RPC links and verification URLs via different environment variables:

VariableDescriptionTENDERLY_TESTNET_ID_{network_id}Virtual Environment UUID, uniquely identifying it within TenderlyTENDERLY_ADMIN_RPC_URL_{network_id}Admin RPC endpoint with cheatcode methodsTENDERLY_PUBLIC_RPC_URL_{network_id}Public RPC endpointTENDERLY_CHAIN_ID_{network_id}Chain IDTENDERLY_TESTNET_SLUG_{network_id}Unique Virtual Environment slugTENDERLY_FOUNDRY_VERIFICATION_URL_{network_id}Foundry verification URLBUILD_OUTPUT_FILE_{network_id}Build output file path

Test the Github Action Locally

You can test your GitHub Action locally using Act without pushing to GitHub.

Use the .env file to populate GitHub secrets and environment variables as follows:

act --secret-file .env --var-file .env

Stage 2: Github Setup

After confirming your local setup works, configure your GitHub repository using the following steps.

Configure Secrets and Variables

Set up the following GitHub secrets and variables:

Secrets:

TENDERLY_ACCESS_KEY: the Tenderly Access Key

DEPLOYER_PRIVATE_KEY: the private key for the deployer EOA

Variables:

TENDERLY_PROJECT_NAME: the Tenderly project name

TENDERLY_ACCOUNT_NAME: the project’s owner’s name

DEPLOYER_WALLET_ADDRESS: the deployer EOA

You can achieve this via the GitHub UI or using the gh command line:

# Load environment variables
source .env

# Set variables
gh variable set TENDERLY_PROJECT_NAME --body ${TENDERLY_PROJECT_NAME}
gh variable set TENDERLY_ACCOUNT_NAME --body ${TENDERLY_ACCOUNT_NAME}
gh variable set DEPLOYER_WALLET_ADDRESS --body ${DEPLOYER_WALLET_ADDRESS}

# Set secrets
gh secret set TENDERLY_ACCESS_KEY --body ${TENDERLY_ACCESS_KEY}
gh secret set DEPLOYER_PRIVATE_KEY --body ${DEPLOYER_PRIVATE_KEY}

Push the Updates

Finally, commit and push your changes:

git add .
git commit -m "Add CI/CD workflow for Foundry"
git push

Check your action

Go go your Github repository and check Actions tab. Congrats, you ran your CI/CD workflow with Virtual Environments and Foundry. After

Get the RPC link

To get the RPC link, go to Tenderly dashboard > Virtual Environments and find your CD Virtual Environment.

Next steps

Explore the Foundry example on Github.
Explore the Hardhat example on Github.
Use the balance fixtures.
