Rabby Wallet Transaction Preview

This tutorial shows how to integrate a “transaction preview” feature into a Rabby Wallet example using the Tenderly Simulation API. Transaction Preview enables wallet users to simulate transaction execution and preview the exact outcomes without sending transactions on-chain. This way, users can better understand the financial implications of their transactions and send them with confidence. Additionally, you help protect users’ funds, eliminate unnecessary gas costs, and improve the overall user experience and security of your product. Here’s the GitHub repository of this open-source example:

Integrate Tenderly Transaction Simulations Into Rabby Wallet

Tenderly Rabby Transaction Preview Demo

This tutorial is solely for illustrative purposes, showcasing how to integrate Transaction Preview into Rabby Wallet. It’s not intended or recommended for any other usage.

Project overview

In this tutorial, you’ll learn how to integrate the Tenderly Simulation API into the Rabby Wallet Chrome extension. First, you’ll learn how to interact with the API and implement the transaction simulation logic. Then, you’ll group the simulation data and expose it to the user. This way, you’ll improve the user experience in this Rabby Wallet example by adding new functionalities.

Prerequisites

For this tutorial, you need:

Node.js (version 14 or later)
Yarn
Knowledge of React.js, TypeScript, and Tailwind CSS

Let’s start building! 👷‍♂️

Step 1: Clone the Rabby Wallet project

First, fork or clone the official Rabby Wallet GitHub repository. To do this, run:

example

git clone https://github.com/RabbyHub/Rabby.git

Next, navigate to the project root and install the dependencies using the Yarn package manager:

example

yarn install

Then, use the following command to run the repo locally:

example

yarn build:dev

The dist folder will be generated. You can use it to load your Chrome extension. Go to chrome://extensions and enable Developer mode. Then, click the “Load unpacked” button, navigate to your Rabby directory, and select the dist folder. The unpacked extension will be visible on the screen, and you can start using Rabby Wallet. Now, you can import your existing wallet or create a new one.

Before you start, make sure to disable the production version of the Rabby Wallet Chrome Extension if you have it installed.Please follow the official guidelines from the Rabby team in case you encounter any connection issues.

Enabled unpacked version of the Rabby Wallet

Disabled production version of the Rabby Wallet

Step 2: Generate a Tenderly access token

To use the Tenderly Simulation API, you need to generate an access token. Follow these steps:

Create a free Tenderly account or log into your existing one.
Go to the Authorization page and click the Generate Access Token button.
The token secret is displayed only once. Be sure to copy and store it somewhere safe as you won’t be able to retrieve it later.

Follow the guide below if you need any help with the API authentication process:

How to Generate API Access Tokens

Step 3: Build the simulation logic

Next, we’ll cover the following steps:

Set up a secure storage system for the Tenderly credentials.
Create the necessary code to connect with the Tenderly Simulation API.
Use both private and public endpoints to interact with the API.
Construct a proper payload for these endpoints.

Handling Tenderly Credentials

First, you need to retrieve the Tenderly credentials. Create a file /_raw/tenderly.json and update the Tenderly credentials:

example.json

{
  "tenderlyAccount": "YOUR_ACCOUNT_NAME",
  "tenderlyProject": "YOUR_PROJECT_NAME",
  "tenderlyAccessToken": "YOUR_ACCESS_TOKEN"
}

To access the Tenderly credentials in your project, you need to update build/webpack.common.config.js with the following:

example.js

const { tenderlyAccount, tenderlyProject, tenderlyAccessToken } = require('../_raw/tenderly.json');

// other code...

const config = {
  plugins: [
    // abbreviated
    new webpack.DefinePlugin({
      'process.env.version': JSON.stringify(`version: ${version}`),
      'process.env.release': JSON.stringify(version),
      // Tenderly Credentials
      'process.env.TENDERLY_ACCOUNT_SLUG': JSON.stringify(tenderlyAccount),
      'process.env.TENDERLY_PROJECT_SLUG': JSON.stringify(tenderlyProject),
      'process.env.TENDERLY_ACCESS_TOKEN': JSON.stringify(tenderlyAccessToken),
    }),
  ],
  resolve: {
    // abbreviated
  },
};

You can find the implementation here.

Implementing the transaction simulation logic

Next, create a src/ui/utils/tenderly.ts file and implement the logic using the Tenderly Simulation API. Get the complete source code here.

example.tsx

export const simulateTransaction = async (tx: Tx): Promise<Record<string, any> | null> => {
  const TENDERLY_ACCOUNT_SLUG = process.env.TENDERLY_ACCOUNT_SLUG;
  const TENDERLY_PROJECT_SLUG = process.env.TENDERLY_PROJECT_SLUG;
  const TENDERLY_ACCESS_TOKEN = process.env.TENDERLY_ACCESS_TOKEN;

  if (!TENDERLY_ACCOUNT_SLUG || !TENDERLY_PROJECT_SLUG || !TENDERLY_ACCESS_TOKEN) {
    throw new Error('Tenderly credentials are not set up correctly.');
  }

  const txPayload: any = {
    ...tx,
    save: true,
    save_if_fails: true,
    simulation_type: 'full',
    source: 'rabby-wallet',
    network_id: tx.chainId.toString(),
    gas: parseInt(tx.gas as string, 16) || null,
    gas_price: parseInt(tx.gasPrice as string, 16) || null,
    value: parseInt(tx.value, 16) || null,
    input: tx.data,
  };

  try {
    const simulationResponse = await axios.post(
      `https://api.tenderly.co/api/v1/account/${TENDERLY_ACCOUNT_SLUG}/project/${TENDERLY_PROJECT_SLUG}/simulate`,
      txPayload,
      {
        headers: {
          'Content-Type': 'application/json',
          'X-Access-Key': TENDERLY_ACCESS_TOKEN as string,
        },
      },
    );

    // Make the simulation publicly accessible
    if (simulationResponse?.data?.simulation?.id) {
      await axios.post(
        `https://api.tenderly.co/api/v1/account/${TENDERLY_ACCOUNT_SLUG}/project/${TENDERLY_PROJECT_SLUG}/simulations/${simulationResponse.data.simulation.id}/share`,
        {},
        {
          headers: {
            'Content-Type': 'application/json',
            'X-Access-Key': TENDERLY_ACCESS_TOKEN as string,
          },
        },
      );
    }

    return simulationResponse?.data;
  } catch (e) {
    console.error({ e });
    return null;
  }
};

Here, we used two endpoints. The first endpoint allows you to simulate a transaction with different parameters on any of the 104 networks supported by Tenderly. Go to our Simulation API reference to see all required and optional fields for this endpoint.

example

https://api.tenderly.co/api/v1/account/{accountId}/project/{projectId}/simulate

The second endpoint enables you to make a simulated transaction publicly accessible. This way, you can share it with your team members or associates for additional insights or quick issue resolution.

example

https://api.tenderly.co/api/v1/account/{accountId}/project/{projectId}/simulations/{simulationID}/share

The last step is to call the simulateTransaction function within the SignTx.tx component by placing it inside the explainTx function, which is invoked before a transaction is signed. For code details, refer to this link.

Step 4: Display a simulated transaction preview

To help users understand what will happen when sending transactions, you can show human-readable simulation data in the UI. For instance, once wallet users simulate transactions, you can display which assets have been transferred. In the Rabby Wallet example, we created three easy-to-understand sections:

Tenderly Simulation Summary: Think of this as a transaction report card. It gives you the basic information about your transaction, with a direct link to a detailed simulation overview in the Tenderly Dashboard.
Assets In & Assets Out: Get a clear list of all assets (either ERC20 or NFT tokens) your wallet is about to interact with.
Tokens Transferred: View every token transfer that happens within a transaction. For added clarity, group all transfers by address and highlight native coin transfers.

Transaction preview for ERC20 token swap on Uniswap

Transaction preview for NFT token purchase on Joepegs

Tenderly Simulation Summary

First, let’s create the Tenderly Simulation Summary section. Here, we show the simulation status, a network where the transaction is executed, and the gas value. To build this section, you need to interact with the Tenderly Simulation API response. Start by creating a TenderlySimulationSummary.tsx file. You can find the whole code implementation below or in the GitHub repo here.

example.tsx

const TenderlySimulationSummary = ({ simulation }: { simulation: Record<string, any> | null }) => {
  const isSuccess = !!simulation?.status;
  const simulationUrl = `https://dashboard.tenderly.co/${process.env.TENDERLY_ACCOUNT_SLUG}/${process.env.TENDERLY_PROJECT_SLUG}/simulator/${simulation?.id}`;
  const sharedSimulationUrl = `https://tdly.co/shared/simulation/${simulation?.id}`;

  return (
    <div className="tenderly-simulation-summary container">
      <p className="text-16 text-gray-title font-medium mb-12">Tenderly Simulation Summary</p>
      {!simulation && <div>Something went wrong.</div>}
      {simulation && (
        <div className="flex flex-col gap-8">
          <div className="flex items-center justify-between gap-2">
            <div>Status</div>
            <div className={isSuccess ? 'text-green' : 'text-red'}>
              {isSuccess ? 'Success' : 'Failed'}
            </div>
          </div>
          <div className="flex items-center justify-between gap-2">
            <div>Network</div>
            <div className="flex items-center gap-4">
              <div className="flex items-center rounded-full">
                <img
                  src={TenderlyNetwork[simulation.network_id]?.image}
                  className="h-16 rounded-full"
                  alt="Tenderly"
                />
              </div>
              <div>{TenderlyNetwork[simulation.network_id]?.name}</div>
            </div>
          </div>
          <div className="flex items-center justify-between gap-2">
            <div>Gas</div>
            <div>{simulation.gas}</div>
          </div>
          <Button
            className="tenderly-simulation-summary-button flex items-center justify-between gap-2 pb-0"
            href={simulationUrl}
            target="_blank"
            rel="noreferrer"
            size="large"
            block
          >
            <div>View details</div>
            <div className="flex items-center gap-2">
              <img src={TenderlySvg} className="h-32" alt="Tenderly" />
              <IconRightArrow />
            </div>
          </Button>
          <Button
            className="text-[#6E56CF] bg-white flex items-center justify-center gap-2 pb-0"
            href={sharedSimulationUrl}
            target="_blank"
            rel="noreferrer"
            type="link"
            size="middle"
            block
          >
            <div>Share simulation ✨</div>
          </Button>
        </div>
      )}
    </div>
  );
};

export default TenderlySimulationSummary;

Notice how we generated the links that lead users to the Tenderly Dashboard. The first link is for the authenticated users and the second one is a shareable transaction simulation link:

example.tsx

const simulationUrl = `https://dashboard.tenderly.co/${process.env.TENDERLY_ACCOUNT_SLUG}/${process.env.TENDERLY_PROJECT_SLUG}/simulator/${simulation?.id}`;
const sharedSimulationUrl = `https://tdly.co/shared/simulation/${simulation?.id}`;

To retrieve the data from a simulated transaction, refer to the Tenderly Simulation API reference:

Tenderly Simulation API

Assets In & Assets Out

The second section provides insights into managing and monitoring the flow of assets within the Rabby Wallet example. It shows both the incoming and outgoing assets to give you a better view of the wallet activity. To achieve this, start by creating a TenderlyWalletChanges.tsx file:

example.tsx

const TenderlyWalletChanges = ({
  account,
  assetChanges,
}: {
  account?: Account;
  assetChanges: any;
}) => {
  const { assetsInList, assetsOutList } = React.useMemo(() => {
    const assetsInList = assetChanges.filter(asset => asset.to === account?.address) || [];
    const assetsOutList = assetChanges.filter(asset => asset.from === account?.address) || [];

    return {
      assetsInList,
      assetsOutList,
    };
  }, [account, assetChanges]);

  return (
    <div className="TenderlyWalletChanges">
      <div className="TenderlyWalletChanges__Content">
        {/* Assets Out */}
        {assetsOutList?.length > 0 && (
          <>
            <p className="text-16 text-gray-title font-medium mb-4">Assets Out</p>
            <div className="flex flex-col gap-4 border border-gray-divider rounded-sm">
              {assetsOutList.map((token, index) => (
                <div
                  key={index}
                  className={clsx('flex gap-4 p-4', {
                    'border-t-[1px] border-gray-divider': index !== 0,
                  })}
                >
                  <div className="flex items-center justify-center p-4">
                    <img src={token.token_info.logo} className="w-60 rounded" alt="Tenderly" />
                  </div>
                  <div className="flex flex-col gap-4">
                    <div className="flex flex-col gap-1">
                      <div className="font-semibold">
                        {token.token_info.symbol.toUpperCase()}
                        {token.token_id && <span className="ml-2">#{Number(token.token_id)}</span>}
                      </div>
                      <div className="text-12 text-gray-content">{token.token_info.name}</div>
                    </div>
                    <div className="flex flex-wrap items-center gap-4">
                      <div className="font-semibold">{token.type}:</div>
                      <div className="text-red-forbidden">- {formatAmount(token.amount)}</div>
                      <div className="text-12 text-gray-content">
                        (≈ {formatUsdValue(new BigNumber(token.dollar_value).toFixed())})
                      </div>
                    </div>
                  </div>
                </div>
              ))}
            </div>
          </>
        )}

        {/* Assets In */}
        {assetsInList?.length > 0 && (
          <>
            <p className="text-16 text-gray-title font-medium mt-4 mb-4">Assets In</p>
            <div className="flex flex-col gap-4 border border-gray-divider rounded-sm">
              {assetsInList.map((token, index) => (
                <div
                  key={index}
                  className={clsx('flex gap-4 p-4', {
                    'border-t-[1px] border-gray-divider': index !== 0,
                  })}
                >
                  <div className="flex items-center justify-center p-4">
                    <img src={token.token_info.logo} className="w-60 rounded" alt="Tenderly" />
                  </div>
                  <div className="flex flex-col gap-4">
                    <div className="flex flex-col gap-1">
                      <div className="font-semibold">
                        {token.token_info.symbol.toUpperCase()}
                        {token.token_id && <span className="ml-2">#{Number(token.token_id)}</span>}
                      </div>
                      <div className="text-12 text-gray-content">{token.token_info.name}</div>
                    </div>
                    <div className="flex flex-wrap items-center gap-4">
                      <div className="font-semibold">{token.type}:</div>
                      <div className="text-green">+ {formatAmount(token.amount)}</div>
                      <div className="text-12 text-gray-content">
                        (≈ {formatUsdValue(new BigNumber(token.dollar_value).toFixed())})
                      </div>
                    </div>
                  </div>
                </div>
              ))}
            </div>
          </>
        )}
      </div>
      <TenderlyCredits classname="mt-12" />
    </div>
  );
};

export default TenderlyWalletChanges;

Here, we filtered out the asset changes array and created two lists:

Assets getting into the wallet
Assets going out of the wallet

Then, we used helper functions to preview and format the data. However, you can also create your own UI layout to show the important asset information. Learn more about simulation asset changes here:

Asset and Balance Changes

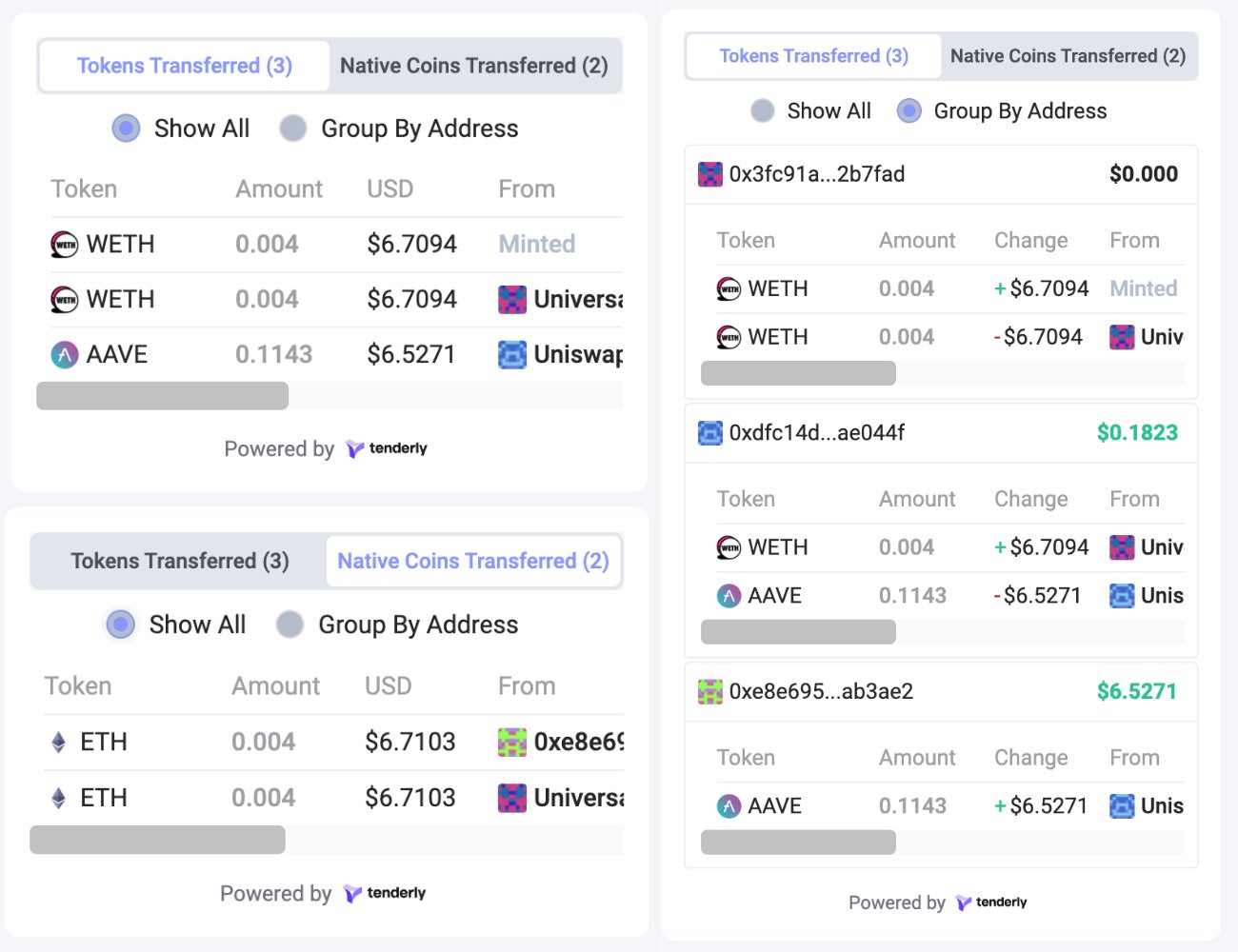

Tokens Transferred

The Token Transfers section is a more complex component. This file primarily manages the layout, so let’s first discuss the sorting logic. You can find the implementation of this section here. Start by creating a TenderlyAssetChanges.tsx file. It contains the logic for presenting two tabs: Tokens Transferred and Native Coins Transferred. To do this, you need to add the logic for sorting, switching between tabs, and grouping the data by address.

First, let’s group the data and create two arrays: tokens transferred and native coins transferred:

example.tsx

const assetChangesMappedByType = React.useMemo<
  Record<AssetChangesTabs, TransactionAssetChangeData[]>
>(
  () =>
    transactionAssetChanges.reduce(
      (
        acc: {
          nativeCoinsTransferred: TransactionAssetChangeData[];
          tokensTransferred: TransactionAssetChangeData[];
        },
        assetChange: TransactionAssetChangeData,
      ) => {
        const { type } = assetChange.tokenInfo;
        if (type === TokenType.NATIVE) {
          return {
            ...acc,
            [AssetChangesTabs.nativeCoins]: [...(acc?.nativeCoinsTransferred ?? []), assetChange],
          };
        }
        return {
          ...acc,
          [AssetChangesTabs.tokens]: [...(acc?.tokensTransferred ?? []), assetChange],
        };
      },
      { [AssetChangesTabs.nativeCoins]: [], [AssetChangesTabs.tokens]: [] },
    ),
  [assetChanges],
);

Next, let’s write the logic for handling sorting types in two ways: chronologically and per address. Here, we need two components: ChronologicalContent.tsx and PerAddressContent.tsx. You can find the implementation in the GitHub repository:

Grouping and previewing all components

Finally, let’s put all of the components together. To do this, you need to create a TenderlySimulationResult.tsx file. You also need to use the useWallet() hook provided by the Rabby team to interact with the connected wallet address. Here’s the code overview:

example.tsx

const TenderlySimulationResult = ({ data }: { data: Record<string, any> | null }) => {
  const [account, setAccount] = React.useState<Account>();
  const wallet = useWallet();

  const init = async () => {
    const currentAccount = await wallet.syncGetCurrentAccount();

    if (currentAccount) {
      setAccount(currentAccount);
    }
  };

  React.useEffect(() => {
    init();
  }, []);

  return (
    <div className="tenderly-simulation-result mt-16">
      <ActionWrapper>
        {!data && <div className="bg-[#f5f6fa] sticky top-[64px] z-10">Something went wrong.</div>}
        {data && <TenderlySimulationSummary simulation={data.simulation} />}
      </ActionWrapper>
      {data?.transaction?.transaction_info.asset_changes && (
        <>
          <ActionWrapper>
            <TenderlyWalletChanges
              account={account}
              assetChanges={data.transaction.transaction_info.asset_changes}
            />
          </ActionWrapper>
          <ActionWrapper>
            <TenderlyAssetChanges
              assetChanges={data.transaction.transaction_info.asset_changes}
              contracts={data.contracts}
            />
          </ActionWrapper>
        </>
      )}
    </div>
  );
};

export default TenderlySimulationResult;

What’s next?

Congrats! You added the Transaction Preview feature to a Rabby Wallet example using the Tenderly Simulation API. 🎉 To dive into the logic, check out the complete source code on GitHub. Additionally, you can initiate Tenderly transaction simulations using three different methods depending on your project requirements. To learn about other ways to integrate transaction simulations into your wallet or dapp, take a look at the following resources:

Getting Started

Simulator

Console

Monitor

Node RPC

Account & Settings

Rabby Wallet Transaction Preview

Integrate Tenderly Transaction Simulations Into Rabby Wallet

Project overview

Prerequisites

Step 1: Clone the Rabby Wallet project

Step 2: Generate a Tenderly access token

How to Generate API Access Tokens

Step 3: Build the simulation logic

Handling Tenderly Credentials

Implementing the transaction simulation logic

Step 4: Display a simulated transaction preview

Tenderly Simulation Summary

Tenderly Simulation API

Assets In & Assets Out

Asset and Balance Changes

Tokens Transferred

Grouping and previewing all components

What’s next?

Simulation API

Simulating Transactions

Simulation RPC

Integrate Tenderly Transaction Simulations Into Rabby Wallet

​Project overview

​Prerequisites

​Step 1: Clone the Rabby Wallet project

​Step 2: Generate a Tenderly access token

How to Generate API Access Tokens

​Step 3: Build the simulation logic

​Handling Tenderly Credentials

​Implementing the transaction simulation logic

​Step 4: Display a simulated transaction preview

​Tenderly Simulation Summary

Tenderly Simulation API

​Assets In & Assets Out

Asset and Balance Changes

​Tokens Transferred

​Grouping and previewing all components

​What’s next?

Simulation API

Simulating Transactions

Simulation RPC

Project overview

Prerequisites

Step 1: Clone the Rabby Wallet project

Step 2: Generate a Tenderly access token

Step 3: Build the simulation logic

Handling Tenderly Credentials

Implementing the transaction simulation logic

Step 4: Display a simulated transaction preview

Tenderly Simulation Summary

Assets In & Assets Out

Tokens Transferred

Grouping and previewing all components

What’s next?
